The model’s recall

A team built a binary classification model. They named the classes A and B.

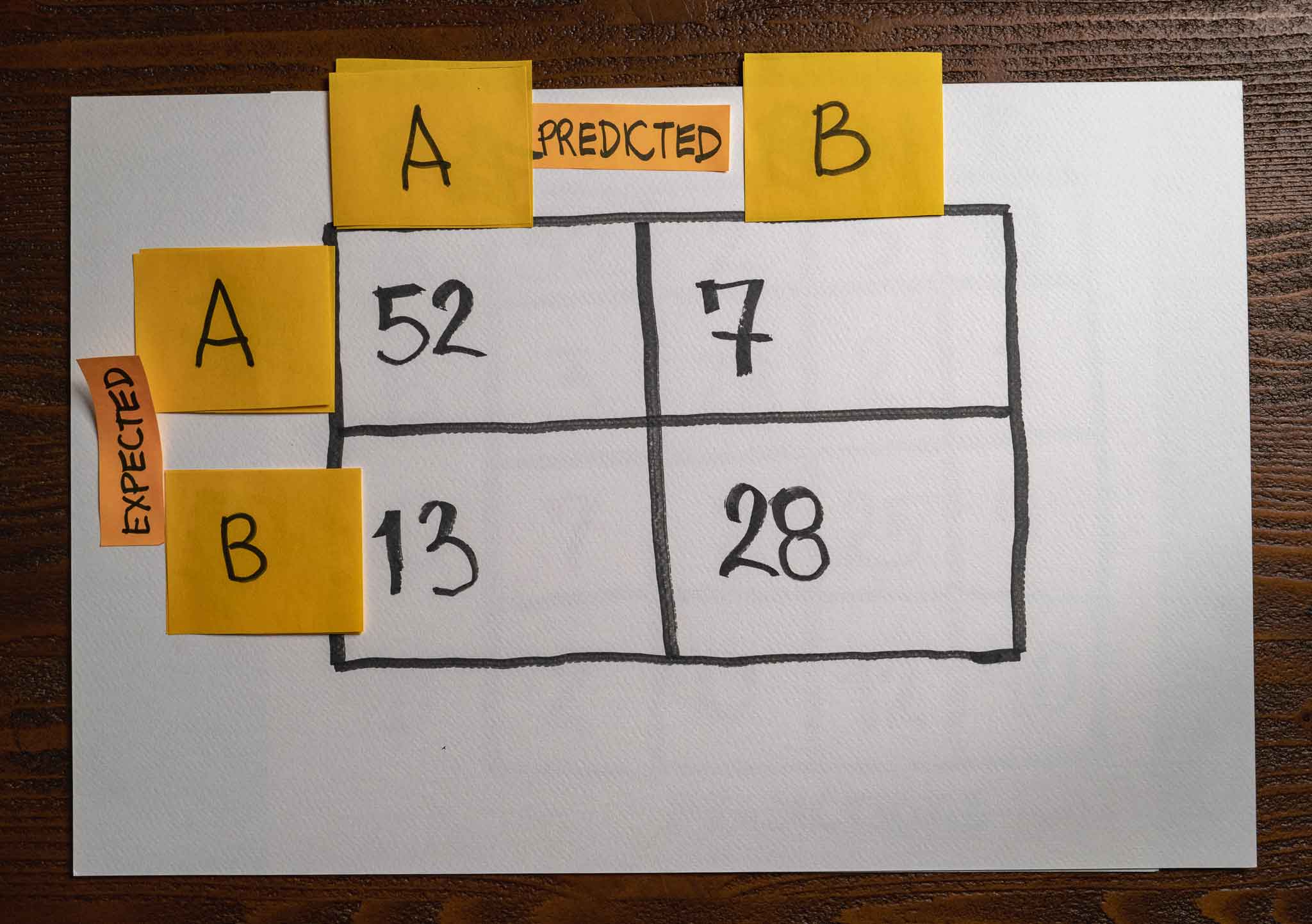

After finishing training, they evaluated the model on a validation set, and here is the confusion matrix with the results:

Given the above confusion matrix, what of the following correctly represents the model’s recall predicting classes A and B, respectively?

1. The model’s recall predicting class A is 80%, and class B is 80%.

2. The model’s recall predicting class A is 88%, and class B is 68%.

3. The model’s recall predicting class A is 88%, and class B is 88%.

4. The model’s recall predicting class A is 68%, and class B is 88%.

Expand to see the answer

2

To compute the model’s recall, we can use the following formula:

recall = TP / (TP + FN)

Let’s start with class A. We have 52 true positive samples and 7 false negatives in this example. Substituting these values in our formula:

recall = TP / (TP + FN)
recall = 52 / (52 + 7)
recall = 52 / 59
recall = 0.88

Therefore, the model’s recall at predicting class A is 88%.

We can now look at class B. We have 28 true positive samples and 13 false negatives in this example. Substituting these values in our formula:

recall = TP / (TP + FN)
recall = 28 / (28 + 13)
recall = 28 / 41
recall = 0.68

Therefore, the model’s recall at predicting class B is 68%.
